Versatility、Long service life、High reliability in performance.
Operating voltage: 10-30VDC
Output function: NPN/PNP,NO/NC,2wire can choose.
Protection level: IP67
With polarity, overload, short circuit protection.
Wiring method: lead wire type、connector type
Operating temperature: -25℃...+70℃
With the unique Defbest technology to increases the anti-interference, reduces the influence of humidity and temperature, and improves the product precision.
Data download

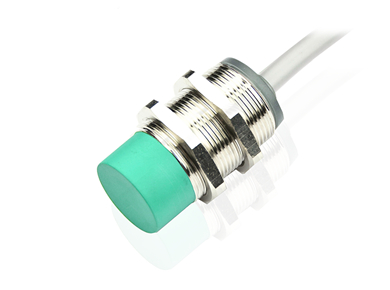

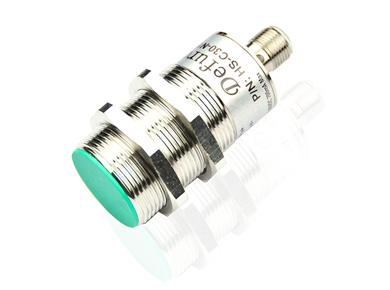

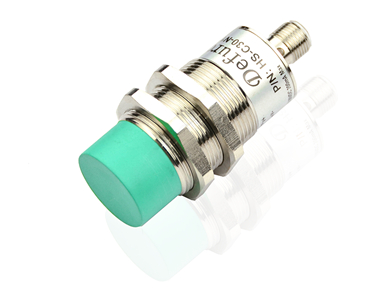

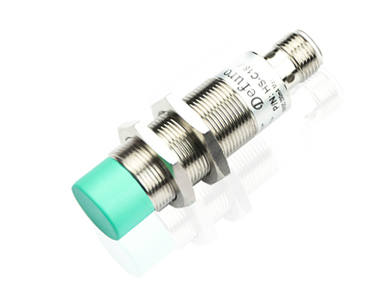

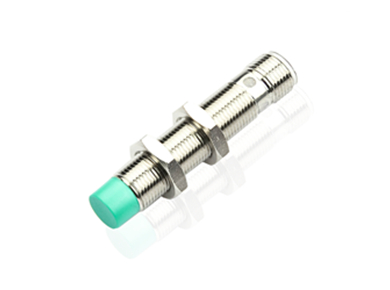

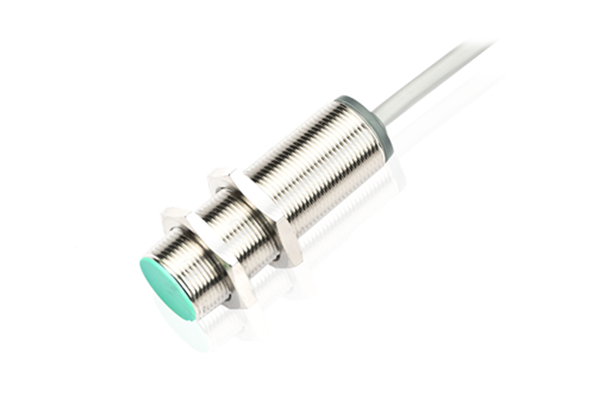

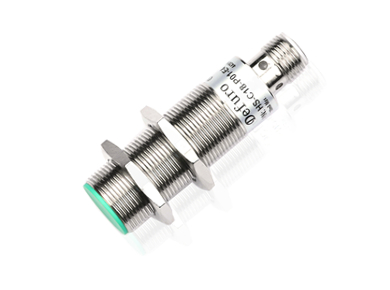

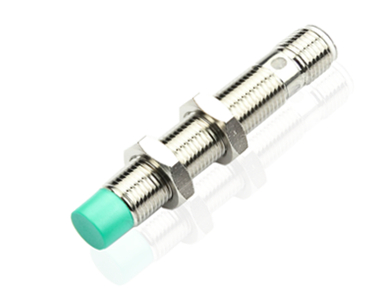

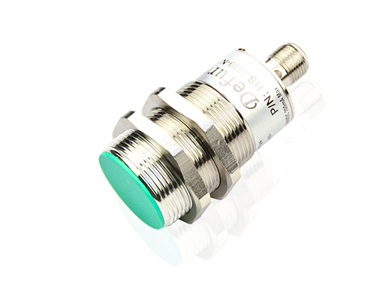

| Diameter | Mounting | Operating distance/Sn | Housing material | Operating voltage | Output | Model | Connection type | |
|---|---|---|---|---|---|---|---|---|
 |
M30*53 | Non-Shielded | 15.0mm | stainless steel | 10-30VDC | DC 3 Wire | HS-CS30 | M12 Connector |
 |
M30*48 | Shielded | 10.0mm | stainless steel | 10-30VDC | DC 3 Wire | HS-CS30 | M12 Connector |
 |

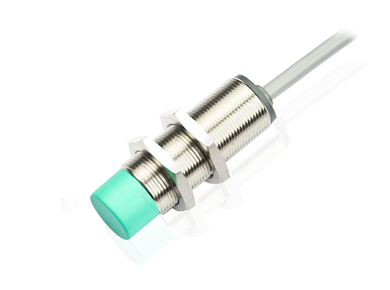

M30*40 | Non-Shielded | 15.0mm | stainless steel | 10-30VDC | DC 3 Wire | HS-CS30 | PVC,2m |
 |
M30*35 | Shielded | 10.0mm | stainless steel | 10-30VDC | DC 3 Wire | HS-CS30 | PVC,2m |
 |
M30*75 | Non-Shielded | 15.0mm | stainless steel | 10-30VDC | DC 3 Wire | HS-C30 | M12 Connector |
 |
M30*75 | Shielded | 10.0mm | stainless steel | 10-30VDC | DC 3 Wire | HS-C30 | M12 Connector |
 |
M30*55 | Non-Shielded | 15.0mm | stainless steel | 10-30VDC | DC 3 Wire | HS-C30 | PVC,2m |
 |
M30*55 | Shielded | 10.0mm | stainless steel | 10-30VDC | DC 3 Wire | HS-C30 | PVC,2m |
 |
M18*53 | Non-Shielded | 8.0mm | stainless steel | 10-30VDC | DC 3 Wire | HS-CS18 | M12 Connector |
 |
M18*48 | Shielded | 5.0mm | stainless steel | 10-30VDC | DC 3 Wire | HS-CS18 | M12 Connector |
 |

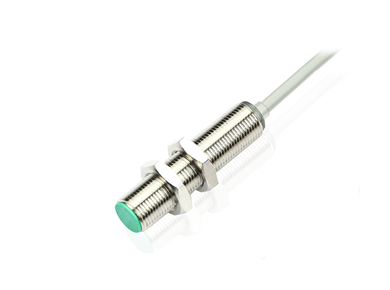

M18*40 | Non-Shielded | 8.0mm | stainless steel | 10-30VDC | DC 3 Wire | HS-CS18 | PVC, 2 m |
 |
M18*35 | Shielded | 5.0mm | stainless steel | 10-30VDC | DC 3 Wire | HS-CS18 | PVC, 2 m |
 |
M18*65 | Non-Shielded | 8.0mm | stainless steel | 10-30VDC | DC 3 Wire | HS-C18 | M12 Connector |
 |
M18*65 | Shielded | 5.0mm | stainless steel | 10-30VDC | DC 3 Wire | HS-C18 | M12 Connector |
 |
M18*55 | Non-Shielded | 8.0mm | stainless steel | 10-30VDC | DC 3 Wire | HS-C18 | PVC, 2 m |
 |
M18*55 | Shielded | 5.0mm | stainless steel | 10-30VDC | DC 3 Wire | HS-C18 | PVC, 2 m |
 |

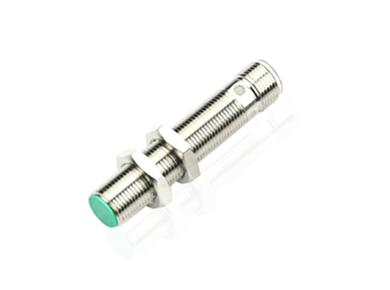

M12*50 | Non-Shielded | 4.0mm | stainless steel | 10-30VDC | DC 3 Wire | HS-CS12 | M12 Connector |
 |
M12*50 | Shielded | 2.0mm | stainless steel | 10-30VDC | DC 3 Wire | HS-CS12 | M12 Connector |
 |
M12*35 | Non-Shielded | 4.0mm | stainless steel | 10-30VDC | DC 3 Wire | HS-CS12 | PVC, 2 m |
 |
M12*35 | Shielded | 2.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-CS12 | PVC, 2 m |
 |
M12*60 | Non-Shielded | 4.0mm | stainless steel | 10-30VDC | DC 3 Wire | HS-C12 | M12 Connector |
 |
M12*60 | Shielded | 2.0mm | stainless steel | 10-30VDC | DC 3 Wire | HS-C12 | M12 Connector |
 |
M12*50 | Non-Shielded | 4.0mm | stainless steel | 10-30VDC | DC 3 Wire | HS-C12 | PVC,2m |
 |
M12*50 | Shielded | 2.0mm | stainless steel | 10-30VDC | DC 3 Wire | HS-C12 | PVC,2m |
 |

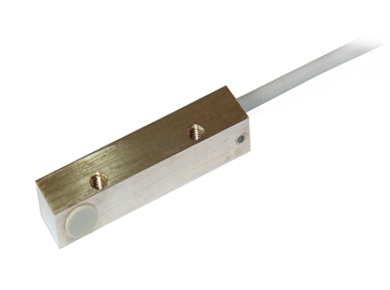

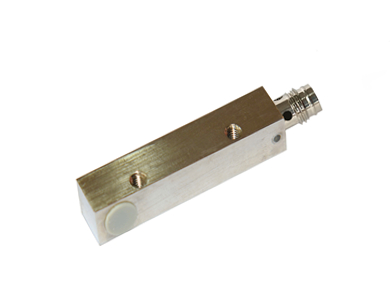

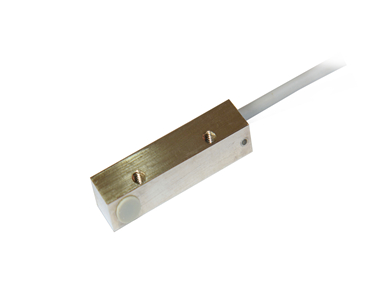

Q8*8*30 | Shielded | 1.0mm | Nickel plated brass | 10-30VDC | DC 3 Wire | HS-QS08 | PVC, 2 m |
 |
Q8*8*50 | Shielded | 1.0mm | Nickel plated brass | 10-30VDC | DC 3 Wire | HS-Q08 | M8 Connector |
 |
Q8*8*40 | Shielded | 1.0mm | Nickel plated brass | 10-30VDC | DC 3 Wire | HS-Q08 | PVC, 2 m |
 |

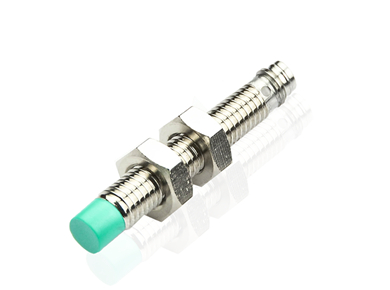

M8*53 | Non-Shielded | 2.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-CS08 | M12 Connector |
 |
M8*53 | Shielded | 1.5mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-CS08 | M12 Connector |
 |

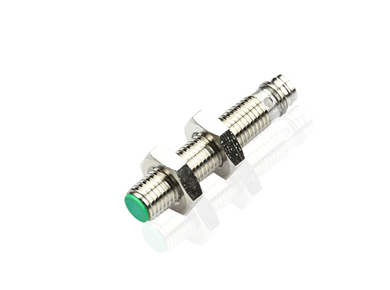

M8*45 | Non-Shielded | 2.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-CS08 | M8 Connector |
 |
M8*45 | Shielded | 1.5mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-CS08 | M8 Connector |
 |
M8*30 | Non-Shielded | 2.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-CS08 | PVC, 2 m |
 |
M8*30 | Shielded | 1.5mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-CS08 | PVC, 2 m |
 |
M8*70 | Non-Shielded | 2.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-C08 | M12 Connector |
 |
M8*70 | Shielded | 1.5mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-C08 | M12 Connector |
 |
M8*60 | Non-Shielded | 2.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-C08 | M8 Connector |
 |
M8*60 | Shielded | 1.5mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-C08 | M8 Connector |
 |
M8*40 | Non-Shielded | 2.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-C08 | PVC, 2 m |
 |
M8*40 | Shielded | 1.5mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-C08 | PVC, 2 m |
 |

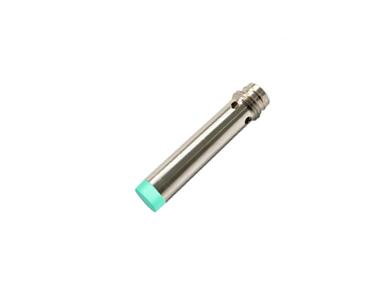

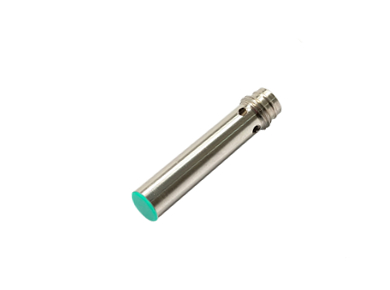

φ6.5*45 | Non-Shielded | 2.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-SS6.5 | M8 Connector |
 |
φ6.5*45 | Shielded | 1.5mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-SS6.5 | M8 Connector |
 |
φ6.5*30 | Non-Shielded | 2.0mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-SS6.5 | PVC, 2 m |
 |
φ6.5*30 | Shielded | 1.5mm | Stainless steel | 10-30VDC | DC 3 Wire | HS-SS6.5 | PVC, 2 m |
