Current position：Home - Products - Ordinary inductive sensors - DC three-wire miniaturized inductive proximity switch

Small size, high precision, suitable for narrow space use;
Working voltage: 10- 30 VDC;
Output function: NPN/PNP, NO/NC optional;
Polarity, overload, short circuit protection;
Protection class: IP67;
Direct outgoing line type, connector type;
Operating temperature-25 ℃-+70℃;
Optimized process and advanced packaging technology ensure long-term stable operation in harsh environments

Data download

Diameter	Mounting	Operating distance/Sn	Housing material	Operating voltage	Output	Model	Connection type

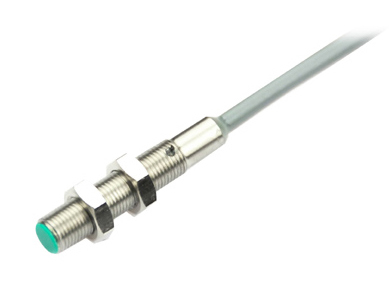

φ3	flush	0.6mm	stainless steel	10-30VDC	DC 3 Wire	φ3*25	axial cable exit

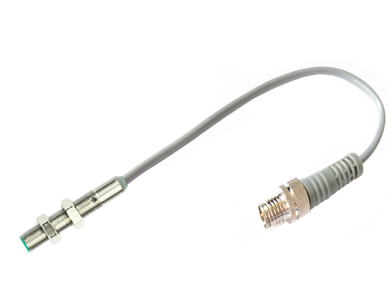

φ3	flush	0.6mm	stainless steel	10-30VDC	DC 3 wire	φ3*25	prewired M8 connector
M4	flush	0.6mm	stainless steel	10-30VDC	DC 3 wire	M4*25	axial cable exit

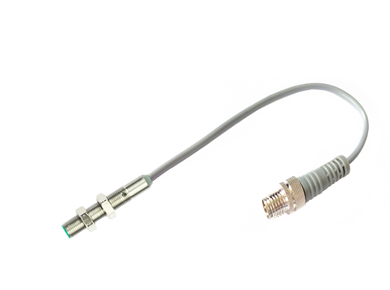

M4	flush	0.6mm	stainless steel	10-30VDC	DC 3 wire	M4*25	prewired M8 connector
φ4	flush	0.8mm	stainless steel	10-30VDC	DC 3 wire	φ4*25	axial cable exit
φ4	flush	0.8mm	stainless steel	10-30VDC	DC 3 wire	φ4*25	prewired M8 connector
φ4	flush	1.5mm	stainless steel	10-30VDC	DC 3 wire	φ4*25	axial cable exit
φ4	flush	1.5mm	stainless steel	10-30VDC	DC 3 Wire	φ4*25	prewired M8 connector
M5	flush	0.8mm	stainless steel	10-30VDC	DC 3 wire	M5*25	axial cable exit
M5	flush	0.8mm	stainless steel	10-30VDC	DC 3 wire	M5*25	prewired M8 connector
M5	flush	1.5mm	stainless steel	10-30VDC	DC 3 wire	M5*25	axial cable exit
M5	flush	1.5mm	stainless steel	10-30VDC	DC 3 wire	M5*25	prewired M8 connector
M5	flush	0.8mm	stainless steel	10-30VDC	DC 3 wire	M5*28	axial cable exit
M5	flush	0.8mm	stainless steel	10-30VDC	DC 3 wire	M5*28	prewired M8 connector
M5	flush	1.5mm	stainless steel	10-30VDC	DC 3 wire	M5*28	axial cable exit
M5	flush	1.5mm	stainless steel	10-30VDC	DC 3 wire	M5*28	prewired M8 connector

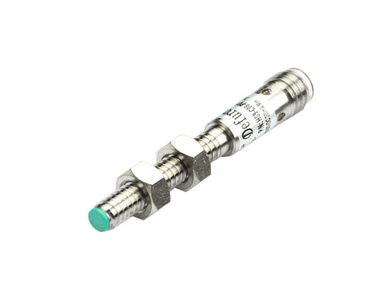

M5	flush	0.8mm	stainless steel	10-30VDC	DC 3 wire	M5*40	M8 connector
M5	flush	1.5mm	stainless steel	10-30VDC	DC 3 wire	M5*40	M8 connector
M5	flush	1mm	stainless steel	10-30VDC	DC 3 wire	M5*28	axial cable exit
M5	flush	1mm	stainless steel	10-30VDC	DC 3 wire	M5*28	prewired M8 connector

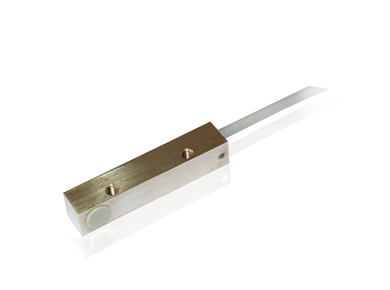

Q5	flush	0.8mm	nickel plated brass	10-30VDC	DC 3 wire	Q5526	axial cable exit

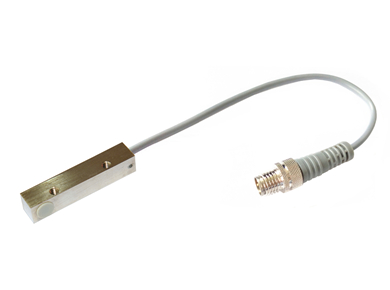

Q5	flush	0.8mm	nickel plated brass	10-30VDC	DC 3 wire	Q5526	prewired M8 connector
Q5	flush	1.5mm	nickel plated brass	10-30VDC	DC 3 wire	Q5526	axial cable exit
Q5	flush	1.5mm	nickel plated brass	10-30VDC	DC 3 wire	Q5526	prewired M8 connector
