Current position：Home - Products - Photoelectric sensors - P5050 square photoelectric series

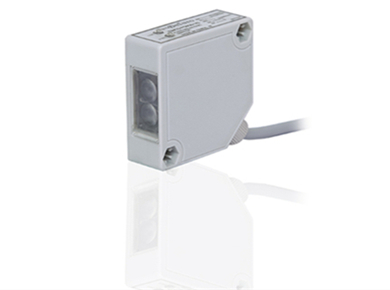

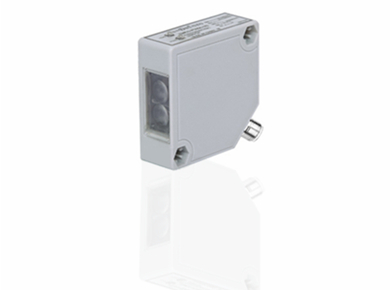

P5050 square photoelectric series

  • Infrared light source can be customized.

  • Operating voltage: 24-240VAC,12-240VDC, 10-30VDC

  • Output function: NPN/PNP,light-ON,dark-ON.

  • Protection level: IP67

  • With polarity, overload, short circuit protection.

  • Wiring method:lead wire type、connector type.

  • Operating temperature:-25℃...+55℃

  • The general photoelectric switch can be detected by red light, infrared light, laser and other light sources. It has many advantages such as high accuracy, fast response, non-contact, background suppression, etc. It has wide application in detection and control.

Data download
Diameter Mounting Operating distance/Sn Housing material Operating voltage Output model Connection type
P50*50*18 Retro-reflective 10m PBT 24-240V AC/DC AC/DC 5 Wire EMR2-P5050 M12 Connector
P50*50*18 Retro-reflective 10m PBT 24-240V AC/DC AC/DC 5 Wire EMR2-P5050 PVC, 2 m
P50*50*18 Retro-reflective(with polarizing filter) 6m PBT 24-240V AC/DC AC/DC 5 Wire EMR-P5050 M12 Connector
P50*50*18 Retro-reflective(with polarizing filter) 6m PBT 24-240V AC/DC AC/DC 5 Wire EMR-P5050 PVC, 2 m
P50*50*18 Diffuse 30cm~2m PBT 24-240V AC/DC AC/DC 5 Wire EMD3-P5050 M12 Connector
P50*50*18 Diffuse 30cm~2m PBT 24-240V AC/DC AC/DC 5 Wire EMD3-P5050 PVC, 2 m
P50*50*18 Diffuse 20cm~1m PBT 24-240V AC/DC AC/DC 5 Wire EMD2-P5050 M12 Connector
P50*50*18 Diffuse 20cm~1m PBT 24-240V AC/DC AC/DC 5 Wire EMD2-P5050 PVC, 2 m
P50*50*18 Diffuse 100~400.0mm PBT 24-240V AC/DC AC/DC 5 Wire EMD-P5050 M12 Connector
P50*50*18 Diffuse 100~400.0mm PBT 24-240V AC/DC AC/DC 5 Wire EMD-P5050 PVC, 2 m
P50*50*18 Through beam 40m PBT 24-240V AC/DC Emitter:AC/DC 2 Wire; Receiver:AC/DC 5 Wire EMT4-P5050 M12 Connector
P50*50*18 Through beam 40m PBT 24-240V AC/DC Emitter:AC/DC 2 Wire; Receiver:AC/DC 5 Wire EMT4-P5050 PVC, 2 m
P50*50*18 Through beam 30m PBT 24-240V AC/DC Emitter:AC/DC 2 Wire; Receiver:AC/DC 5 Wire EMT3-P5050 M12 Connector
P50*50*18 Through beam 30m PBT 24-240V AC/DC Emitter:AC/DC 2 Wire; Receiver:AC/DC 5 Wire EMT3-P5050 PVC, 2 m
P50*50*18 Through beam 20m PBT 24-240V AC/DC Emitter:AC/DC 2 Wire; Receiver:AC/DC 5 Wire EMT2-P5050 M12 Connector
P50*50*18 Through beam 20m PBT 24-240V AC/DC Emitter:AC/DC 2 Wire; Receiver:AC/DC 5 Wire EMT2-P5050 PVC, 2 m
P50*50*18 Through beam 10m PBT 24-240V AC/DC Emitter:AC/DC 2 Wire; Receiver:AC/DC 5 Wire EMT-P5050 M12 Connector
P50*50*18 Through beam 10m PBT 24-240V AC/DC Emitter:AC/DC 2 Wire; Receiver:AC/DC 5 Wire EMT-P5050 PVC, 2 m
P50*50*18 Retro-reflective 10m PBT 10-30VDC DC 5 Wire EMR2-P5050 M12 Connector
P50*50*18 Retro-reflective 10m PBT 10-30VDC DC 5 Wire EMR2-P5050 PVC, 2 m
P50*50*18 Retro-reflective(with polarizing filter) 6m PBT 10-30VDC DC 5 Wire EMR-P5050 M12 Connector
P50*50*18 Retro-reflective(with polarizing filter) 6m PBT 10-30VDC DC 5 Wire EMR-P5050 PVC, 2 m
P50*50*18 Diffuse 30cm~2m PBT 10-30VDC DC 5 Wire EMD3-P5050 M12 Connector
P50*50*18 Diffuse 30cm~2m PBT 10-30VDC DC 5 Wire EMD3-P5050 PVC, 2 m
P50*50*18 Diffuse 20cm~1m PBT 10-30VDC DC 5 Wire EMD2-P5050 M12 Connector
P50*50*18 Diffuse 20cm~1m PBT 10-30VDC DC 5 Wire EMD2-P5050 PVC, 2 m
P50*50*18 Diffuse 100~400.0mm PBT 10-30VDC DC 4 Wire EMD-P5050 M12 Connector
P50*50*18 Diffuse 100~400.0mm PBT 10-30VDC DC 5 Wire EMD-P5050 PVC, 2 m
P50*50*18 Through beam 40m PBT 10-30VDC Emitter:DC ​2 Wire; Receiver:DC 5 Wire EMT4-P5050 M12 Connector
P50*50*18 Through beam 40m PBT 10-30VDC Emitter:DC ​2 Wire; Receiver:DC 5 Wire EMT4-P5050 PVC, 2 m
P50*50*18 Through beam 30m PBT 10-30VDC Emitter:DC ​2 Wire; Receiver:DC 5 Wire EMT3-P5050 M12 Connector
P50*50*18 Through beam 30m PBT 10-30VDC Emitter:DC ​2 Wire; Receiver:DC 5 Wire EMT3-P5050 PVC, 2 m
P50*50*18 Through beam 20m PBT 10-30VDC Emitter:DC ​2 Wire; Receiver:DC 5 Wire EMT2-P5050 M12 Connector
P50*50*18 Through beam 20m PBT 10-30VDC Emitter:DC ​2 Wire; Receiver:DC 5 Wire EMT2-P5050 PVC, 2 m
P50*50*18 Through beam 10m PBT 10-30VDC Emitter:DC ​2 Wire; Receiver:DC 5 Wire EMT-P5050 M12 Connector
P50*50*18 Through beam 10m PBT 10-30VDC Emitter:DC ​2 Wire; Receiver:DC 5 Wire EMT-P5050 PVC, 2 m
