Current position：Home - Products - Ordinary inductive sensors - DC three-wire inductive proximity switch

Operating voltage: 10-30VDC Output function:
NPN/PNP, NO/NC optional
Polarity, overload, short circuit protection
Protection class: IP67
Straight Out, Insertion
Operating temperature-25℃-+70℃
Optimized traditional process and advanced packaging technology to ensure long-term stable operation in harsh environments
Data download

Diameter	Mounting	Operating distance/Sn	Housing material	Operating voltage	Output	Model	Connection type
φ6.5	flush/non-flush	1.5mm/2mm/3mm/4mm/6mm	Nickel plated copper/stainless steel	10-30VDC	DC 3 Line	φ6.5*1	straight line
φ6.5	flush/non-flush	1.5mm/2mm/3mm/4mm/6mm	Nickel plated copper/stainless steel	10-30VDC	DC 3 Line	φ6.5	connector
φ6.5	flush/non-flush	1.5mm/2mm/3mm/4mm/6mm	Nickel plated copper/stainless steel	10-30VDC	DC 3 Line	φ6.5*1	connector
M8	flush/non-flush	1.5mm/2mm/3mm/4mm/6mm	Nickel plated copper/stainless steel	10-30VDC	DC 3 Line	M8*1	connector
M8	flush/non-flush	1.5mm/2mm/3mm/4mm/6mm	Nickel plated copper/stainless steel	10-30VDC	DC 3 Line	M8*1	connector
M8	flush/non-flush	1.5mm/2mm/3mm/4mm/6mm	Nickel plated copper/stainless steel	10-30VDC	DC 3 Line	M8*1	straight line
M8	flush/non-flush	1.5mm/2mm/3mm/4mm/6mm	Nickel plated copper/stainless steel	10-30VDC	DC 3 Line	M8*1	straight line

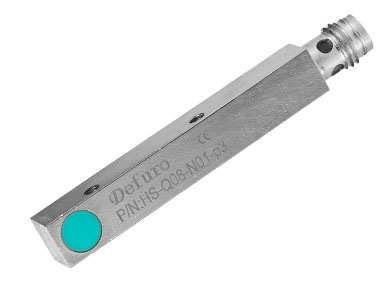

Q8	flush	3mm	nickel-clad copper	10-30VDC	DC 3 Line	Q8*1	connector
Q8	flush	3mm	nickel-clad copper	10-30VDC	DC 3 Line	Q8*1	connector
Q8	flush	3mm	nickel-clad copper	10-30VDC	DC 3 Line	Q8*1	straight line

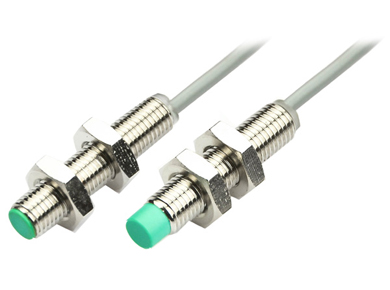

M12	flush/non-flush	4mm/5mm/6mm/8mm/10mm	Nickel plated copper/stainless steel	10-30VDC	DC 3 Line	M12*1	connector
M12	flush/non-flush	4mm/5mm/6mm/8mm/10mm	Nickel plated copper/stainless steel	10-30VDC	DC 3 Line	M12*1	connector
M12	flush/non-flush	4mm/5mm/6mm/8mm/10mm	Nickel plated copper/stainless steel	10-30VDC	DC 3 Line	M12*1	straight line
M12	flush/non-flush	4mm/5mm/6mm/8mm/10mm	Nickel plated copper/stainless steel	10-30VDC	DC 3 Line	M12*1	straight line

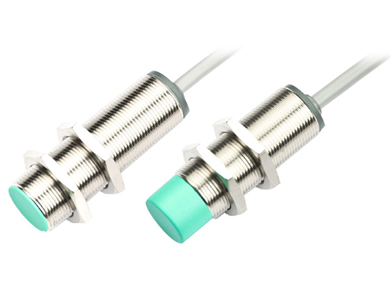

M18	flush/non-flush	5mm/8mm/12mm/16mm/20mm	Nickel plated copper/stainless steel	10-30VDC	DC 3 Line	M18155	straight line
M18	flush/non-flush	5mm/8mm/12mm/16mm/20mm	Nickel plated copper/stainless steel	10-30VDC	DC 3 Line	M18155	straight line
M18	flush/non-flush	5mm/8mm/12mm/16mm/20mm	Nickel plated copper/stainless steel	10-30VDC	DC 3 Line	M18165	connector
M18	flush/non-flush	5mm/8mm/12mm/16mm/20mm	ABS	10-30VDC	DC 3 Line	M18148/53	connector

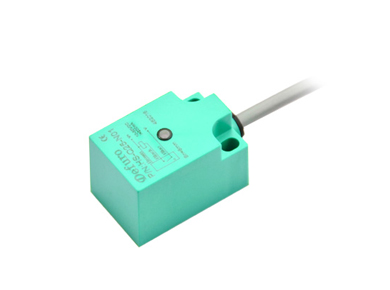

Q16	flush/non-flush	2mm/3mm/4mm/6mm	ABS	10-40VDC	DC 3 Line	Q162810	straight line
Q16	flush/non-flush	2mm/3mm/4mm/6mm	ABS	10-40VDC	DC 3 Line	Q162810	straight line
QL17	quasi flush	5mm	ABS	10-40VDC	DC 3 Line	Q171835.5	straight line
QF18	Quasi-flush	5mm	ABS	10-40VDC	DC3 line	QF181030	straight line
Q25	Quasi-flush	8mm	ABS	10-40VDC	DC3 line	Q2525.538.5	straight line
Q30	Quasi-flush	15mm	ABS	10-40VDC	DC3 line	Q303052.5	straight line

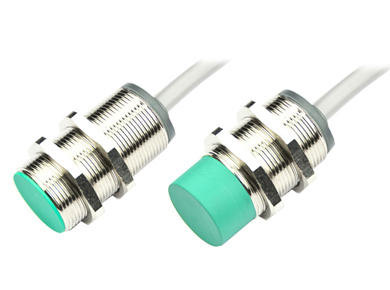

M30	flush/non-flush	10mm/15mm/30mm/40mm	Nickel plated copper/stainless steel	10-30/10-55/10-60VDC	DC 3 Wire	M30155	straight line
M30	flush/non-flush	10mm/15mm/30mm/40mm	Nickel plated copper/stainless steel	10-30/10-55/10-60VDC	DC 3 Wire	M30155	straight line
M30	flush/non-flush	10mm/15mm/30mm/40mm	Nickel plated copper/stainless steel	10-30VDC	DC 3 Wire	M30175	connector
M30	flush/non-flush	22mm/40mm	Stainless steel and nickel plated copper	10-30VDC	DC3 line	M30*48/53	connector

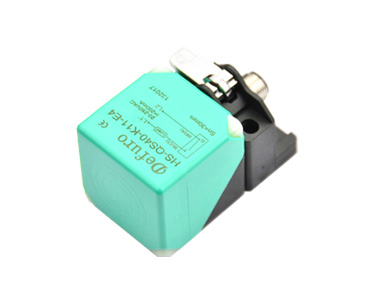

RS40	齐平/非齐平	15mm/30mm	PBT	10-30/10-55/10-60VDC	DC3线	RS404065	connector

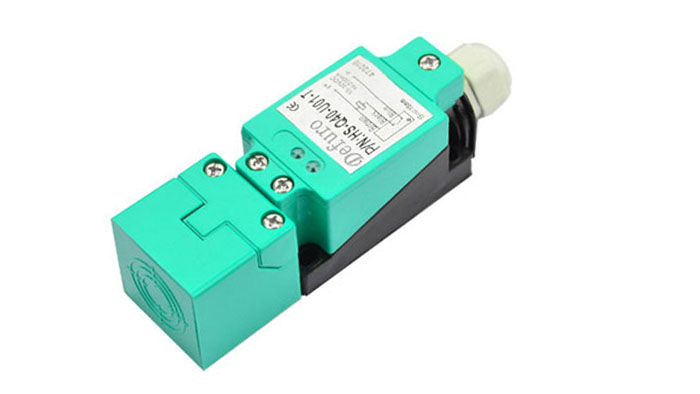

R40	Not flush	30mm	PBT	10-30/10-55/10-60VDC	DC 3 Wire	R4040118	connector

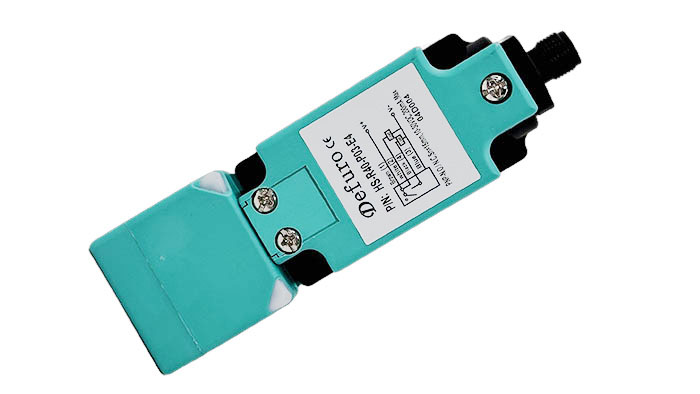

R40	flush/non-flush	15mm/30mm/30mm/40mm	PBT	10-30/10-55/10-60VDC	DC 4 Wire	R4040118	connector
