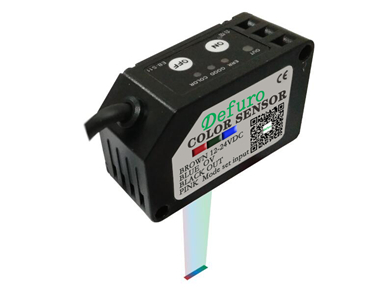

Small size.
Operating temperature:-10℃...+55℃.
Control output: NPN/PNP.
Two-point setup.
Built-in RGB tricolor light source color mode and color code mode.
Spot size about 1.5*7mm (23mm detection distance).
The detection distance is three times of the same color code sensor.
The detecting error can be adjusted, and the effect of the jitter of the detected object can be eliminated.
The unique two-mode type also has the function of color + light intensity detection,the critical bit of no background or no object along the detection edge.
Diameter | Mounting | Operating distance/Sn | Housing material | Operating voltage | Output | model | Connection type | |
---|---|---|---|---|---|---|---|---|
32*21*50 | Amplifier | 18-28mm | Housing:PBT,Operation panel:PC,Operating button:SIL,Lens:PC | 12-24VDC | DC 4 Wire | HSD | Optical fiber |
