Integrated stainless steel housing including induction.
Operating voltage: 10-30VDC.
Have AC or AC/DC (Only HS series)
Output function: NPN/PNP,NO/NC,2wire can choose.
Protection level: IP67
With polarity, overload, short circuit protection.
Wiring method: lead wire type、connector type
Operating temperature: -25℃...+70℃
With corrosion resistant stainless steel shall not be disturbed by any gas or liquid,also resistance to mechanical force and mechanical impact.
Diameter | Mounting | Operating distance/Sn | Housing material | Operating voltage | Output | model | Connection type | |
---|---|---|---|---|---|---|---|---|
![]() |

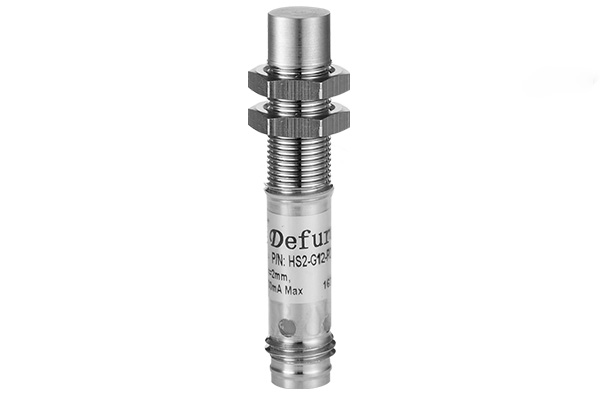

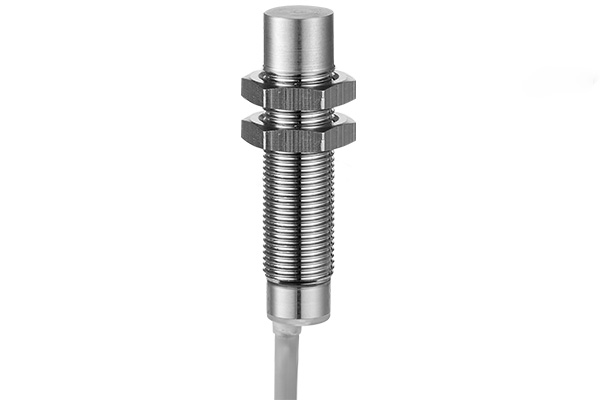

M12 | flush/non-flush | 2mm/4mm/5mm/8mm/10mm | Nickel plated copper/stainless steel | 10-30VDC | DC 3 Line | M12*1 | straight line |
![]() |
M12 | flush/non-flush | 2mm/4mm/5mm/8mm/10mm | Nickel plated copper/stainless steel | 10-30VDC | DC 3 Line | M12*1 | straight line |
![]() |
M12 | flush/non-flush | 2mm/4mm/5mm/8mm/10mm | Nickel plated copper/stainless steel | 10-30VDC | DC 3 Line | M12*1 | connector |
![]() |
M12 | flush/non-flush | 2mm/4mm/5mm/8mm/10mm | Nickel plated copper/stainless steel | 10-30VDC | DC 3 Line | M12*1 | connector |
![]() |

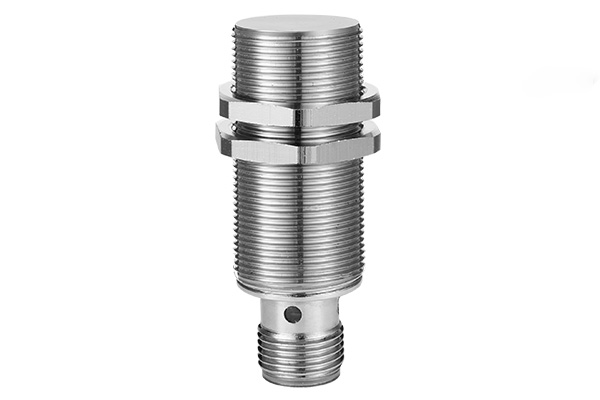

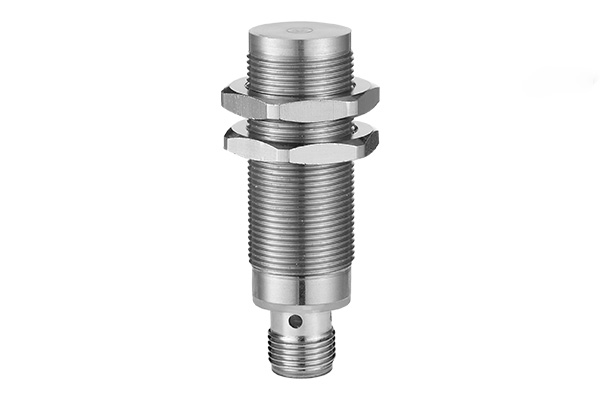

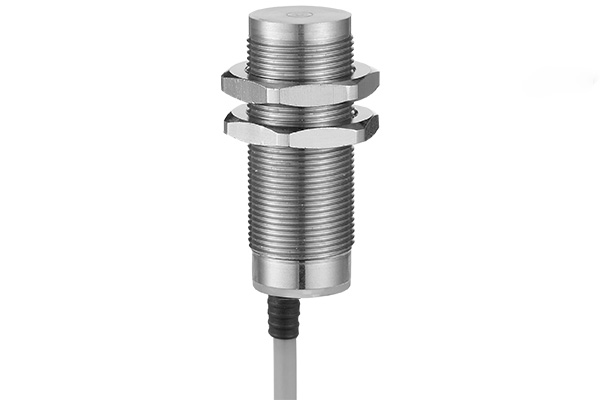

M18 | flush/non-flush | 5mm/8mm/12mm/16mm/20mm | Nickel plated copper/stainless steel | 10-30VDC | DC 3 Line | M18*1 | straight line |
![]() |
M18 | flush/non-flush | 5mm/8mm/12mm/16mm/20mm | Nickel plated copper/stainless steel | 10-30VDC | DC 3 Line | M18*1 | straight line |
![]() |
M18 | flush/non-flush | 5mm/8mm/12mm/16mm/20mm | Nickel plated copper/stainless steel | 10-30VDC | DC 3 Line | M18*1 | connector |
![]() |
M18 | flush/non-flush | 5mm/8mm/12mm/16mm/20mm | Nickel plated copper/stainless steel | 10-30VDC | DC 3 Line | M30*1 | connector |
![]() |

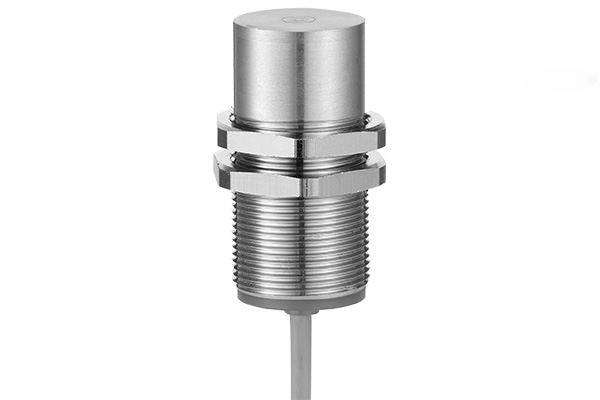

M30 | flush/non-flush | 10mm/15mm/16mm/22mm/25mm/40mm | Nickel plated copper/stainless steel | 10-30VDC | DC 3 Line/ DC 2 Line | M30*1 | straight line |
![]() |
M30 | flush/non-flush | 10mm/15mm/16mm/22mm/25mm/40mm | Nickel plated copper/stainless steel | 10-30VDC | DC 3 Line/ DC 2 Line | M30*1 | straight line |
![]() |
M30 | flush/non-flush | 10mm/15mm/16mm/22mm/25mm/40mm | Nickel plated copper/stainless steel | 10-30VDC | DC 3 Line/ DC 2 Line | M30*1 | connector |
![]() |
M30 | flush/non-flush | 10mm/15mm/16mm/22mm/25mm/40mm | Nickel plated copper/stainless steel | 10-30VDC | DC 3 Line/ DC 2 Line | M30*1 | connector |
