Current position：Home - Products - Ordinary inductive sensors - DC three-wire miniaturized inductive proximity switch
φ4 DC three-wire miniaturized inductive proximity switch Return Data download

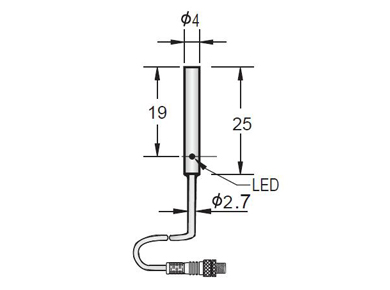

Product pictures Size chart
Characteristics Specifications
Diameterφ4
Flush/Non-flushFlush
Sense Distance
1.5mm
Housing Materialstainless steel
Operating Voltage10-30VDC
Ripple Voltage<10%
No-Load Current<10mA
Max.Load Current100mA
Leakge Current<0.01mA
Voltage Drop<1.5V
Switching Frequency2KHZ
Response Time0.1ms/0.1ms
Switching Hysteresis<15% (Sr)
Repeat Accuracy<1.0 (Sr)
Protection CategoryIP67
Operating Temperature-25℃~70℃
Temperature Drift<10% (Sr)
Short-circuit ProtectionYES
Overload Current220mA
Material Active FacePOM

DC 3 Wire 10-30V NPN N.O.

HS2-S04-N01-CP3

DC 3 Wire 10-30V NPN N.C.

HS2-S04-N02-CP3

DC 3 Wire 10-30V PNP N.O.

HS2-S04-P01-CP3

DC 3 Wire 10-30V PNP N.C.

HS2-S04-P02-CP3
